Inverters

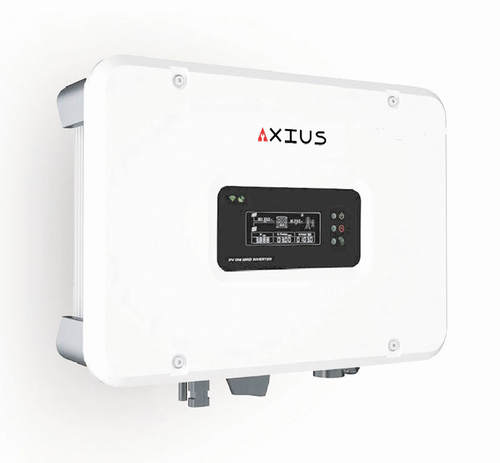

Single Phase Solar GTI
HonS Series
Big LCD Display
Power export limit
Compact and easy to install
WiFi/GPRS/Lan communication optional
| Model No | HonS1000 | HonS1500 | HonS2200 | HonS3000 | HonS3600 | HonS4400 | HonS5000 | HonS6000 |
|---|---|---|---|---|---|---|---|---|
| DC Side / Input Parameters | ||||||||
| Max DC power (W) | 1500W | 2250W | 3300W | 4500W | 5400W | 6600W | 7500W | 7500W |
| Max DC voltage (Vdc) | 450 | 450 | 500 | 500 | 500 | 500 | 500 | 500 |
| Min System start/Shut down voltage (Vdc) | 65/70 | 75/100 | 75/100 | 75/100 | 75/100 | 75/100 | 75/100 | 75/100 |
| MPPT voltage range(Vdc) | 70-450 | 100-450 | 100-450 | 100-450 | 100-450 | 100-450 | 100-450 | 100-450 |
| Max. input current (A) | 13A | 13A/13A | ||||||
| Max.input short circuit per MPPT | 13A | 17A/17A | ||||||
| Number of MPP trackers | 1 | 2 | 1 | |||||
| Strings per MPP tracker | 1 | |||||||
| AC Side / Output Parameters | ||||||||
| Nominal output power (W) | 1000 | 1500 | 2200 | 3000 | 3600 | 4000 | 5000 | 6000 |
| Maximum output power (W) | 1100 | 1650 | 2420 | 3300 | 3960 | 4400 | 5500 | 6600 |
| Nominal output voltage/range (V) | 208,220,230,240/180~270 | |||||||
| AC grid frequency/range (Hz) | 50Hz,60Hz(auto-selection)/ 44Hz-55Hz; 54Hz-65Hz | |||||||
| Maximum output current (A) | 6 | 8 | 12 | 16 | 16 | 21 | 23 | 26 |
| AC connection (with PE) | Single phase | |||||||
| Current distortion(THDi) | <1.5% | <1.5% | <2.5% | <2.5% | ||||
| Power factor | ~1%(Adjustable from 0.8 leading to 0.8 lagging) | |||||||
| Efficiency | ||||||||
| Maximum conversion efficiency | 97.3% | 97.3% | 97.4% | 97.5% | 97.8% | 97.8% | 97.5% | 97.6% |
| European efficiency | 97.0% | 97.0% | 97.1% | 97.2% | 97.3% | 97.3% | 97.2% | 97.3% |
| MPPT efficiency | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% |
Single Phase Solar GTI
HonS Series
Big LCD Display
Power export limit
Compact and easy to install
WiFi/GPRS/Lan communication optional

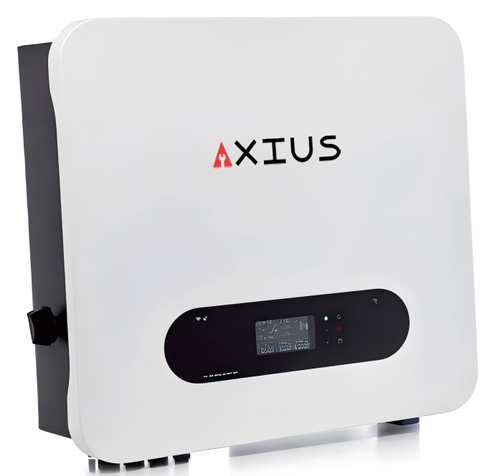

| Model No | HonT4K | HonT5K | HonT6K | HonT8K | HonT10K | HonT12K | HonT15K |
|---|---|---|---|---|---|---|---|
| Input (DC) | |||||||
| Max DC power (W) | 5500W | 6500W | 7500W | 9500W | 11500W | 18000W | 22500W |
| Max DC voltage (Vdc) | 1000Vd.c. | ||||||
| Min working voltage (Vdc) | 160Vd.c. | ||||||
| MPPT voltage range (Vdc) | 160...850Vd.c. | ||||||
| Max input current / per string (A) | 18A/18A | ||||||
| Max.input short circuit per MPPT | 25A/25A | ||||||
| Number of MPP trackers | 2 | ||||||
| Strings per MPP tracker | 1 | ||||||
| Output (AC) | |||||||
| AC nominal power (W) | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 |
| Max AC apparent power (VA) | 5000 | 6000 | 7000 | 8800 | 11000 | 13200 | 16500 |
| Max output current (A) | 8 | 10 | 12 | 15 | 17 | 20 | 23 |
| Nominal AC output | 50/60 Hz; 400 Vac | ||||||
| AC output range | 45/55 Hz; 280-490 Vac (Adj) | ||||||
| Power factor | 0.8leading...0.8lagging | ||||||
| THD | < 5% | ||||||
| Grid type | 3 W/N/PE | ||||||
| Efficiency | |||||||
| Max efficiency | 98.0% | 98.2% | 98.2% | 98.3% | 98.4% | 98.4% | 98.2% |
| Euro efficiency | 97.5% | 97.7% | 97.7% | 97.8% | 97.9% | 97.9% | 98.0% |
| MPPT efficiency | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% |
| Safety and Protection | |||||||
| DC reverse-polarity protection | yes | ||||||
| DC breaker | yes | ||||||
| DC/AC SPD | yes | ||||||
| Leakage current protection | yes | ||||||
| Insulation Impedance Detection | yes | ||||||
| Residual Current protection | yes | ||||||
| General Parameters | |||||||
| Dimension (W/H/D)(mm) | 480*476*157 | ||||||
| Weight (kg) | 16 | ||||||
| Operating temperature range °C | -25...+60 | ||||||
| Degree of protection | IP65 | ||||||
| Cooling concept | Smart Cooling | ||||||
| Topology | Transformerless | ||||||
| Display | LCD | ||||||
| Humidity | 0-95%, no condensation | ||||||
| Communication | RS485/WiFi/GPRS | ||||||
| Warranty | Standard 5 years | ||||||
